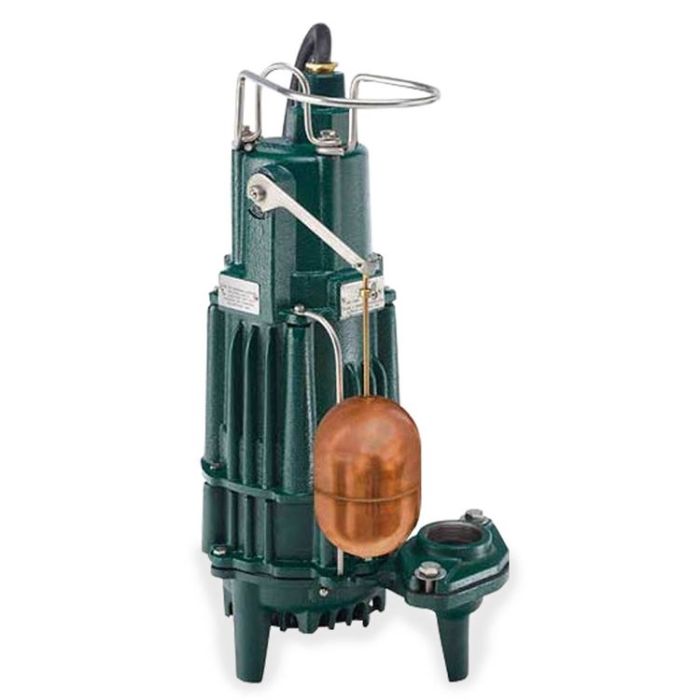

Zoeller 293-0048, Model Jx293, X290 Series, Explosion Proof High Head Sewage Pump, 1 Hp, 200-208 Volts, 3 Phase, 2" Npt Flange Vertical Discharge, 118 Gpm Max, 50 Ft Max Head, 20 Ft Cord, Manual
WWC Part No/ SKU: 1069861
Brand: Zoeller
Mfg. Model: 293-0048
Product Details
| Category | Sewage Pump |
|---|---|
| Horsepower | 2.0 HP |
| Cord Length in feet | 20 ft |
| Voltage | 200V, 60Hz |
| Flow Rate | 145 GPM |
| Material | Cast iron |
| Brand | Zoeller |
In stock
SKU
1069861
$3,672.00 $2,754.00 /Each
Not Available
6123-0048 ZOELLER J6123 200V/3PH/1750/3.0BHP/SEN/4IN D 6123-0048 ZOELLER J6123 200V/3PH/17
Frequently Bought Together
- Corrosion-resistant, powder coated epoxy finish
- Durable cast iron cover, motor adapter and pump housing
- Stainless steel bolts, handle, guard and float rod guide, switch arm and actuator assembly
- Stainless steel screws and handle
- Includes a stainless steel lifting bracket for easy installation and removal
- FM listed motor for Class I, Division 1, Group C & D environments
- Motor - 60 Hz, 3450 RPM, oil-filled, hermetically sealed, overload protection needs to be provided in control panel
- Moisture sensors prewired in motor housing (functionality requires indicator circuit in panel)
- Non-clogging bronze vortex impeller design
- Upper ball bearing and lower ball bearing running in bath of oil
This Waste-Mate series submersible pump is designed for use in residential or commercial wastewater applications in Class I, Division 1, Group C and D locations. Each pump is FM/CSA approved and features innovative motor and electrical enclosures that are designed to reduce the risk of vapor ignition both inside and outside the pump. Should vapors inside the electrical enclosures become ignited, the enclosures are engineered to contain the event and prevent escalation. Each pump is constructed of hardware that will allow it to operate safely and efficiently in extreme conditions.
