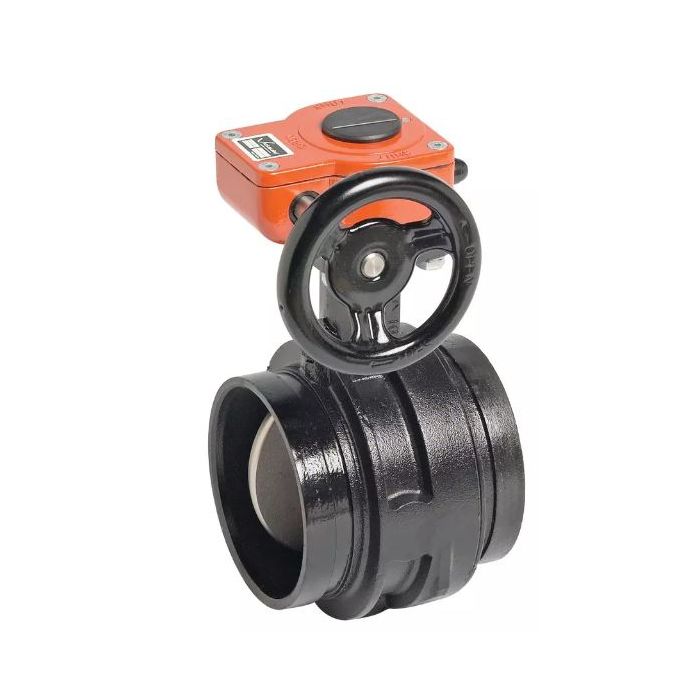

Victaulic V120761SE3 761 Series MasterSeal™ 12 in. Ductile Iron EPDM Gear Operator Handle Butterfly Valve
WWC Part No/ SKU: 816396
Brand: Victaulic
Mfg. Model: V120761SE3
Product Details
| Category | Butterfly Valve |
|---|---|
| Temperature Range | -30 to 250 deg F |
| End Style | Grooved |
| Material | Ductile Iron |
| Brand | Victaulic |
In stock
SKU
816396
$11,590.50
$3,839.48
/Each
Not Available
V120761SE3 VICTAULIC VIC-300 MASTERSEAL BUTTERFLY VALVE 12in; STANDARD NICKEL PLATED DUCTILE IRON DISC / 416 STEM; E-EPDM; GEAR V120761SE3 VPS 12 BFV VIC 300MS E G 12VBFV 12V761
Frequently Bought Together
- Electroless nickel coated ductile iron disc
- Seat patented pressure enhanced rubber seat design
- Drive hub designed to accept nearly all types of actuation
- Stem seals prevents leakage of media
- Upper and lower stem bearings helps maintain constant low torque values for the life of the valve
- Stem blow-out proof design utilizing stainless steel
- Grooved end body reduces the weight of the valve and makes it easier to install
- Seal cartridge patented seal cartridge houses stem seals
- Thermal barrier reduces condensation on gear operators when installed in chilled water applications
- Body - Ductile iron conforming to ASTM A-536, grade 65-45-12
- End face, 2 to 6 in ductile iron conforming to ASTM A-536, grade 65-45-12
- Grade E green color code EPDM seat
- Designed for bi-directional, dead end services to full working pressure
- Carbon steel stem retaining ring
- Fiberglass or 316 stainless steel with TFE lining bearing
- Standard C36000 brass stem seal cartridge
