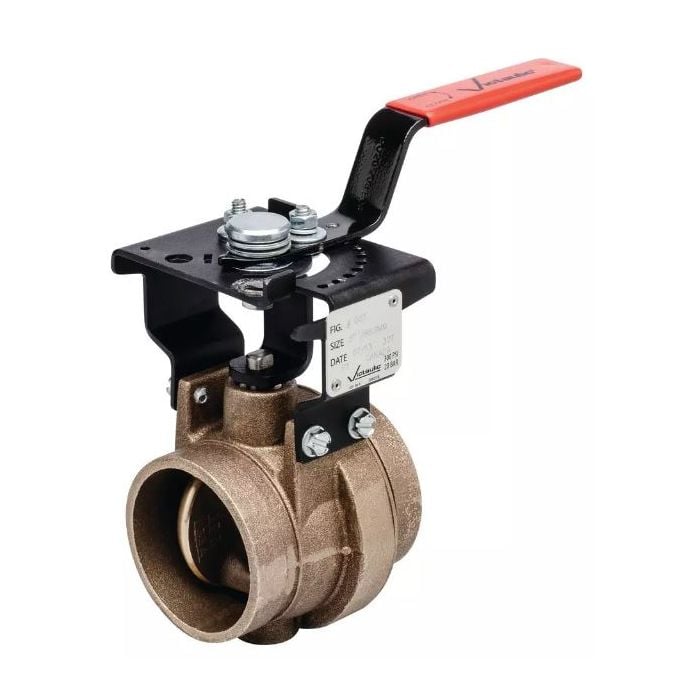

Victaulic V024608NE2 Series 608N 2-1/2 in. Brass EPDM Locking Lever Handle Butterfly Valve
WWC Part No/ SKU: 722436
Brand: Victaulic
Mfg. Model: V024608NE2
Product Details
| Category | Butterfly Valve |
|---|---|
| Item Weight (lbs) | 5 lb |
| Connection Type | Grooved End |
| Material | Brass |
| Brand | Victaulic |
In stock
SKU
722436
$2,785.00
$1,345.22
/Each
Not Available
V024608NE2 VICTAULIC SERIES 608N COPPER BUTTERFLY VALVE 2 1/2in; P; LEVER LOCK HANDLE WITH MEMORY STOP V024608NE2 VPS 2 1/2 BFV 608N BR CH vc608-250
Frequently Bought Together
- Infinitely variable service with memory stop, pad lockable
- Available with lever lock handle and memory stop or with gear operator
- For use in copper tubing systems
- Operating temperature for potable water applications: +20°F to +180°F/-7°C to +82°C
- Operating temperature for non-potable water applications: +20°F to +230°F/-7°C to +110°C
- Pressures up to 300 psi / 2068 kPa / 21 bar
- Sizes from 2 -1/2 - 6” | 66.7 - 155.6 mm
Victaulic series 608N butterfly valves are designed for pressures ranging from full vacuum to 300 PSI and for bi-directional, dead end services to full working pressure. This grooved end valve is joined to a copper tube system by utilizing Style 607 couplings. The valve features a patented seat design that creates full 360-degree sealing. The pressure enhanced seat compresses to form a larger sealing area as the pressure increases. The seat design also contributes to low breakaway torque.
