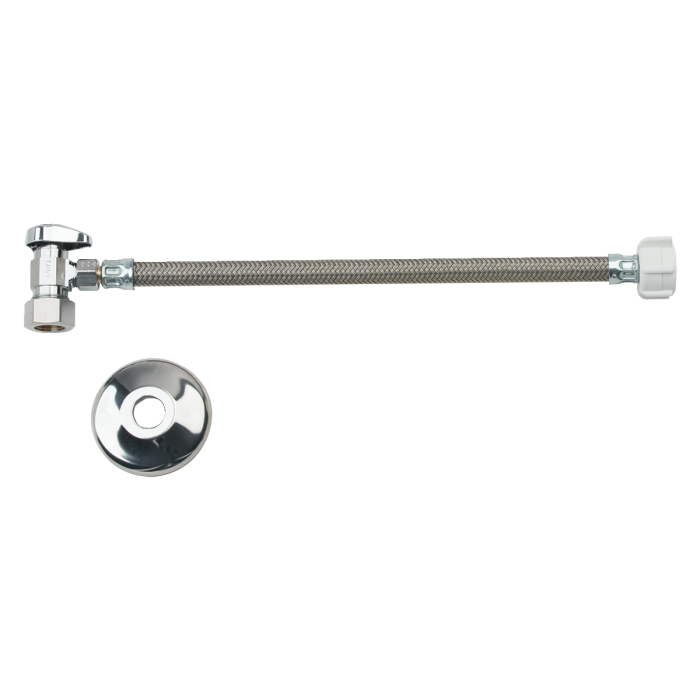

BrassCraft G2CR19B12DLX C Toilet Kit: 1/2 in. Nom Comp x 3/8 in. O.D. Comp 1/4 Turn Angle Valve with 12 in. Braided Connector and Flange
WWC Part No/ SKU: 187489
Brand: BrassCraft
Mfg. Model: G2CR19B12DLX C
Product Details
| Category | Water Supply Kits |
|---|---|
| Overall Dimensions (L x W x H) | 6.0000 x 6.0000 x 0.0000 |
| Item Weight (lbs) | 0.39059 |
| Brand | BrassCraft |
In stock
SKU
187489
$98.97 $19.38 /Each
Not Available
G2CR19B12DLX C BRASS CRAFT TLT KIT 1/4T ANG 1/2CMPX 3/8CMP PLYBRD12 G2CR19B12DLX
- Temperature rating: 40° to 140° F, intermittent to 180° F
- Pressure rating: 125 psi maximum
- Tough PVC inner hose resists attack by chlorine, chloramines and other corrosive elements
- Machined one-piece brass body provides strength, durability and long-lasting performance
- 1/2 in. Nom Comp Inlet x 3/8 in. OD Comp Outlet 1/4-Turn Straight Stop in Rough Brass
- Compatible with copper piping
- For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115° F. For those applications, use our KT™ series ball stops.
- One-piece shut-off mechanism provides smooth on-off operation without freeze-ups even after long periods of non-use
- Easy-to-remove handle protects against accidental operation during rough-ins
BrassCraft Toilet 1/4-Turn Supply Kit includes everything you need to connect your water supply to your toilet. Components include: (1) 1/2 in. Nominal Compression inlet x 3/8 in. O.D. Compression outlet 1/4-turn angle valve, (1) Speedi Plumb® PLUS 3/8 in. O.D. Compression inlet x 7/8 in. Ballcock outlet x 12 in. braided water connector and (1) shallow flange. The water shut-off valve has an angle body which is most often used to connect to a water pipe that enters the room from the wall. The valve features BrassCraft's G2 1/4-turn technology which means with a 90 degree turn of the valve handle, you are able control the flow of water to your plumbing fixture. This 1/4-turn operation allows you to maintain, repair or replace your fixture without shutting off the water to the entire home. The flexible braided polymer connector features a high tenacity, multi-filament yarn, protected by a special polymer coating for optimum corrosion resistance and durability. The braided polymer fibers are also designed to bend freely without kinking or crimping. This connector features BrassCraft's tough PVC inner hose to resist attack by chlorine, chloramines and other corrosive elements.
