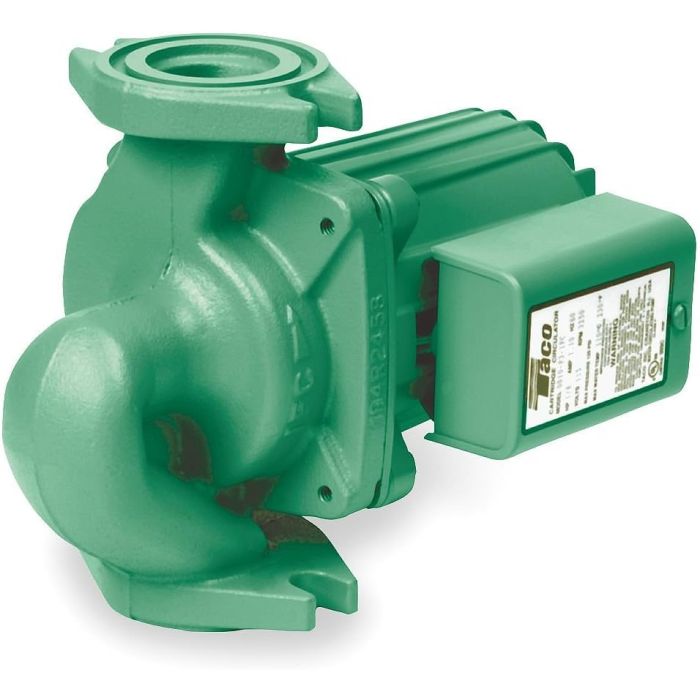

Taco 0010-F3-1IFC, Series 0010 Cast Iron Circulator with Integral Flow Check

WWC Part No/ SKU: 854538

Brand: Taco

Mfg. Model: 0010-F3-1IFC

Product Details
More Information
CategoryCirculator Pump
Horsepower1/8 hp
Temperature Range40°F to 230°F
Overall Dimensions (L x W x H)8.9 x 6.8 x 6.5 inches
Flow Rate30 GPM
Item Weight (lbs)13 pounds
Connection Size1-1/4", 3/4", 1-1/2", 1"
Connection TypeFlanged x Flanged
Maximum PPM3250 RPM
MaterialCast iron
$604.00 $465.69 /Each
Contact branch for price
Note: Free ground shipping on orders over $75!
icon-correct Congratulations! You can enjoy big savings now on our Website.
Not Available
  • Integral Flow check (IFC) Patent #5,664,939
  • Prevents gravity flow
  • Eliminates separate in-line flow check
  • Reduces installed cost, easy to service
  • Improved performance vs. In-line flow checks
  • Unique replaceable cartridge-Field serviceable
  • Unmatched reliability-Maintenance free
  • Quiet, efficient operation
  • Direct drive-Low power consumption
  • Self lubricating, No mechanical seal
  • Standard high capacity output-Compact design
  • Wide range of applications
  • Cast Iron or Bronze construction, Flanged connections
Cast Iron Taco 0010-F3-1IFC Circulator Pump with an Integral Flow Check (IFC) is designed to reduce installation costs when using Taco 0010 circulators. The bulit-in IFC increases the flow performance when compared to regular in-line check valve. Taco 0010-F3-1IFC model can be used for medium head, medium/higher flow residential or light commercial applications such as hydronic heating, radiant floor heating, and hydro-air fan coils. Both the IFC (Integral Flow Check) and circulator pump cartridge are easily accessed for service and eliminate the need for replacing the entire unit.
