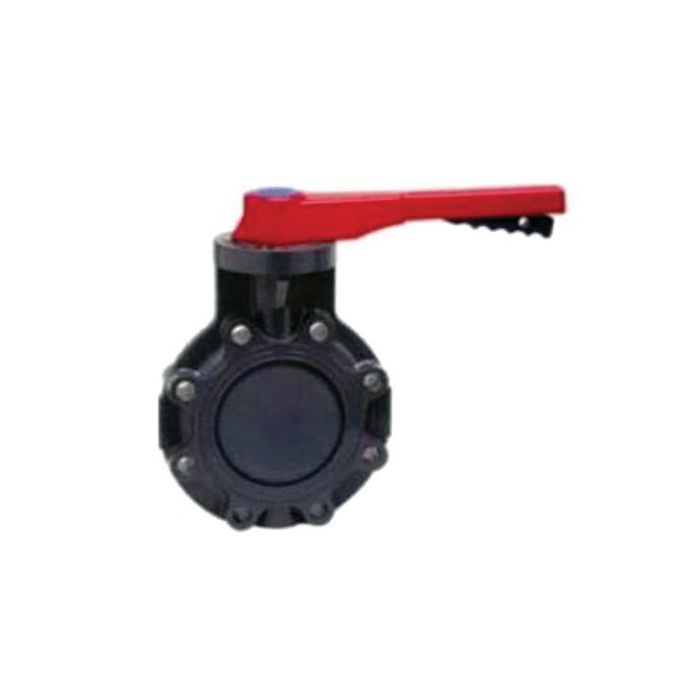

Spears 723311-020 Butterfly Valve, 2 In Nominal, 150 Lb, Pvc Body, Fkm Softgoods, Domestic
WWC Part No/ SKU: 816367
Brand: Spears
Mfg. Model: 723311-020
Product Details
| Category | Butterfly Valves |
|---|---|
| Overall Dimensions (L x W x H) | 6 in Dia x 9-11/32 in H |
| Item Weight (lbs) | 3.23 lbs |
| Color | Gray |
| Material | PVC |
| Brand | Spears |
In stock
SKU
816367
$1,328.24 /Each
Not Available
723311-020 SPEARS 2 PVC BUTTERFLY VALVE FKM W/HANDLE 723311-020 SPEARS 2 PVC BUTTERFLY V
- Special Off-Set Disc Lifts Quickly From Seat To Reduce Wear And Reduce Operating Torque
- Pressure Rated To 150 Psi At 73 Deg F Including Dead-End Service
- Valves With Epdm Seals And Seats Are Nsf Certified For Potable Water Use
- Fkm O-Ring
- Patented Limited Contact Seat Design Provides Free Travel, Eliminates Seat Creep, Extrusion And Wear, Field Replaceable Without Full Valve Disassembly
- Interlocking Body And Seat Prevents Wash-Out Or Blow-Out
- Fully Isolated Solid Type 316L Stainless Steel Stem
- Reversible High Impact Polypropylene Lever Handle With 7-Position Stops And Built-In Lockout (Standard Handle On 1-1/2 - 8 In Valves, Not Available On 10 In And Larger Valves)
- High Efficiency Gear Operator With Cast Aluminum Housing, Polypropylene Handwheel And Built-In Position Indicator
- Lug Insert Style Valve Has Factory Installed Stainless Steel 316 Or Zinc Plated Steel Lug Inserts
- Standard Valve Accepts Field-Installable Lug Inserts Set Option
- True Lug Design Has Factory Installed Zinc Plated Or Stainless Steel 316 Lugs And Is Specially Designed For Connection To Either Side Of Valve
Spears Butterfly Valve, 2 In Nominal, 150 Lb, 140 Deg F, Lever Handle Actuator, 1-15/16 In Inlet To Outlet Length, 6-13/32 In Top To Inlet Center, Pvc Body, 316L Stainless Steel (Stem) Stem & Pin Material, Fkm, Gray, 6 In Dia X 9-11/32 In H, Domestic
Spears Patented Butterfly Valve Design Departs From Traditional Liner-Seat Type Valve To Eliminate Seat Creep, Reduce Operating Torque And Provide Positive Seal-Off. Ideally Suited For Flow Control Or Throttling, This High-Performance Valve Is Offered With A Full Variety Of Options For Greater Application Versatility In Industrial And Chemical Processing Applications. Available In Ips Sizes 1-1/2-14 In Standard Or 1-1/2-12 In True Lug (Factory Installed Lugs) Style.
