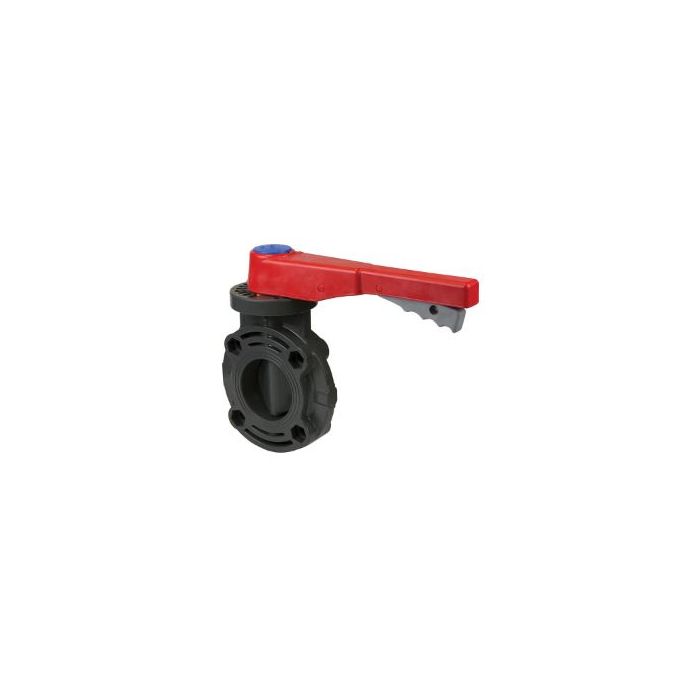

Spears 722311-025C Standard Butterfly Valve, 2-1/2 in Nominal, 150 lb, CPVC Body, EPDM Softgoods, Domestic
WWC Part No/ SKU: 901951
Brand: Spears
Mfg. Model: 722311-025C
Product Details
| Category | Butterfly Valve |
|---|---|
| Item Weight (lbs) | 4.1 lbs |
| Size | 2-1/2 in |
| Color | Gray |
| Material | Cpvc |
| Brand | Spears |
In stock
SKU
901951
$877.35 /Each
Not Available
722311-025C SPEARS 2-1/2 CPVC BUTTERFLY VALVE EPDM W/HANDLE 722311-025C SPEARS 2-1/2 CPVC BUTTE
- Special off-set disc lifts quickly from seat to reduce wear and reduce operating torque
- Pressure rated to 150 psi at 73 deg F including dead-end service
- Valves with EPDM seals and seats are NSF® certified for potable water use
- EPDM O-ring
- Patented limited contact seat design provides free travel, eliminates seat creep, extrusion and wear, field replaceable without full valve disassembly
- Interlocking body and seat prevents wash-out or blow-out
- Fully isolated solid type 316L stainless steel stem
- Reversible high impact polypropylene lever handle with 7-Position stops and built-in lockout (Standard handle on 1-1/2 - 8 in valves, not available on 10 in and larger valves)
- High efficiency gear operator with cast aluminum housing, polypropylene handwheel and built-In position indicator
- Lug insert style valve has factory installed stainless steel 316 or zinc plated steel lug inserts
- Standard valve accepts field-installable lug inserts set option
- True lug design has factory installed zinc plated or stainless steel 316 lugs and is specially designed for connection to either side of valve
Spears Butterfly Valve, Standard, 2-1/2 in Nominal, 150 lb, 73 deg F, Media: Water, Lever Handle Actuator, 2 in Inlet to Outlet Length, 6-25/32 in Top to Inlet Center, CPVC Body, 316L Stainless Steel (Stem) Stem & Pin Material, EPDM, Gray, 6-3/4 in Dia x 10-9/32 in H, Domestic
All thermoplastic valves shall be Butterfly type constructed from PVC Type I Cell Classification 12454 or CPVC Type IV Cell Classification 23447. All valve seats and O-rings shall be Buna-N, EPDM or FKM. Seat shall be a non-liner type interlocked to valve body. Bolt hole patterns shall conform to ANSI/ASME B16.5 CL 150. Disc shall be offset design with fully isolated Type 316L stainless steel stem and Type 316 stainless steel hardware. Lever operated valves shall be equipped with high impact polypropylene handle having built-in lockout capability. Gear operated valves shall be equipped with position indicator and high impact polypropylene handwheel. Valve bodies shall accept field installable lug inserts or shall be factory installed lug inserts, or be True Lug type. Lugs shall be stainless steel or zinc plated steel. Valves shall be pressure rated at 150 psi for water at 73 deg F through 12 in, as manufactured by Spears Manufacturing Company.
