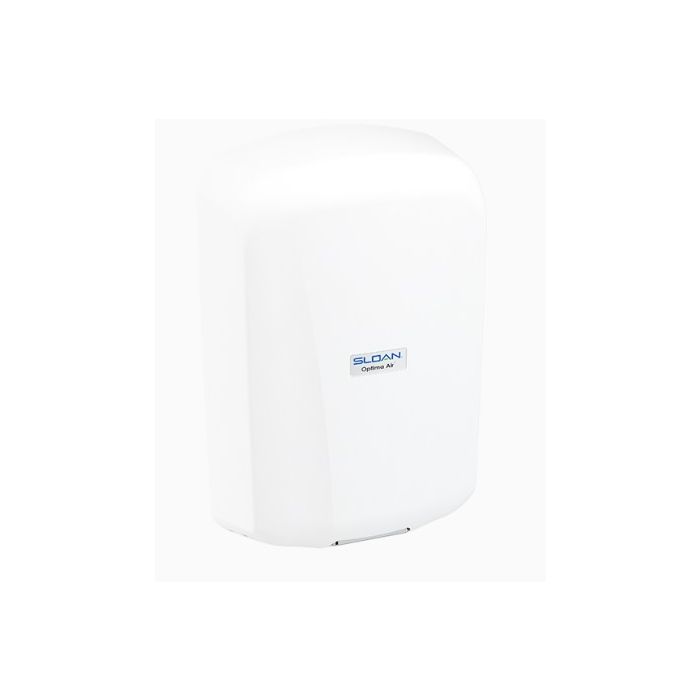

Sloan Optima® EHD-701-PW Air Sensor-Operated Wall/Wall - ADA Hand Dryer
WWC Part No/ SKU: 834894
Brand: Sloan
Mfg. Model: 3366128
Product Details
| Category | Hand dryer |
|---|---|
| Voltage | 110/120V |
| Overall Dimensions (L x W x H) | 14 in L x 4.50 in W x 9.50 in H |
| Installation Type | Wall, Wall - ADA |
| Finish | Polished White |
| Item Weight (lbs) | 7.50 lbs |
| Brand | Sloan |
In stock
SKU
834894
$825.75 $536.74 /Each
Not Available
3366128 SLOAN EHD701-PW 110-120V 7.0-7.7A 3366128 SLOAN EHD701-PW 110-120V 7.
Frequently Bought Together
- Hygienic hand drying solution
- 14 second dry time
- Electric Specifications: 110-120V – 7-7.7 Amps, 770-915 Watts, 50/60 Hz
- Meets ADA requirements without the need of a recess kit
- Adjustable speed and sound (High-Low)
- Adjustable Heat (High-Low-Off)
- 95% cost savings vs. paper towels
- Weight: 8-10 lbs.
- Vandal resistant cover design
- Suggested Mounting Heights for Ideal Performance (from floor to bottom of dryer): Men: 45” (114 cm), Women: 43” (109 cm), Teenagers: 41” (104 cm), Children: 35” (89 cm), ADA: 37” (94 cm). Note: When mounting for any user ensure that it is mounted below the 48” ADA Maximum
- Can install multiple units on one circuit
- 35-second lockout feature if hands are not removed
- Externally visible Red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged
- Virtually maintenance free
- Air temperature of up to 141°F (61°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet).
- Quantity Recommendations: 1 dryer for every 2 sink stations is sufficient for most applications. For high traffic applications we suggest 1 dryer per sink station.
- Variations: Available in 2 finishes/colors
- Optional Add Ons: Wall Guards (White, Black, Stainless)
The EHD-701 is a Sloan Optima Air sensor operated wall mounted hand dryer. This dryer operates by means of an infrared optical sensor. The EHD-701 comes in two colors as well, including Brushed Nickel and Polished White. This product is 110/120V ensuring a strong electrical connection. The EHD-701 averages a 14 second dry time, allowing for an efficient experience for the end user, as well as cost savings for the facility. The EHD-701 meets ADA requirements without the need for a recess kit, and additionally has adjustable speed and sound (high or low), and adjustable heat (high or low). With the EHD-701, facilities can experience a 95% cost savings vs. paper towels, due to the design of the dryer, as well as the vandal resistant cover. The EHD-701 also includes a 35 second lockout features if hands are not removed, and an externally visible red LED light that flashes error codes to assist in troubleshooting and identify if filter has been clogged, and is virtually maintenance free.
