Liberty Pumps D3672LSGX202-24 2 HP Two Stage Grinder Package w/ Float Switch, 208/230v, 36" x 72" Basin
WWC Part No/ SKU: 1368912
Brand: Liberty Pumps
Mfg. Model: D3672LSGX202-24
Product Details
| Category | Grinder Package |
|---|---|
| Horsepower | 2 HP |
| Cord Length in feet | 25ft |
| Voltage | 208/230V |
| Flow Rate | 38 gpm |
| Item Weight (lbs) | 515 lbs |
| Brand | Liberty Pumps |
Not Available
D3672LSGX202-24 LIBERTY 2 HP, 2-STAGE DUPLEX GRINDER PACKAGE, 1PH, 208-230V, 2IN DISCHARGE WITH 36IN X 72IN BASIN AND AE-SERIES ALARM D3672LSGX202-24 LIBERTY 2 HP, 2-STA
- Includes: AE24H=3 Control Panel

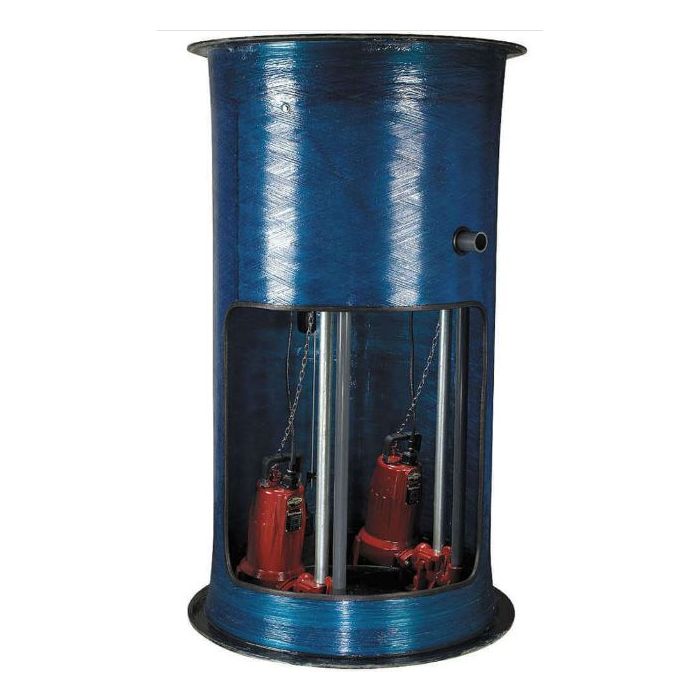

- Factory assembled duplex grinder package with 36" x 72" fiberglass basin with anti-floatation collar
- Package includes two Omnivore Grinder Pumps which feature 2 HP heavy-duty oil filled and thermally protected motor, 208-230v, 1 Phase, 1-1/4" discharge, 24" discharge depth
- GR20 guide rail assemblies included
- New V-Slice Cutter Technology: Recessed cutter bolt eliminates wadding and exclusion cleanout slots clear debris from under the cutter
- Provides superior cutting with improved shredding performance over radial cutters
- V-pattern cutter provides up to 108 alternate cuts per revolution
- QuickTree pre-mounted float system for pump control and alarm
- NEMA 4x junction box for electrical connections included
- Stainless steel chain for pump lift-out included
- Includes Liberty's standard three year limited warranty
For residential and commercial applications, the D3672LSGX202-24 is a complete factory assembled duplex grinder package featuring the LSGX200 Series, 2-Stage, 2 HP Omnivore grinder pump. All internal brackets, floats, guide-rail base and discharge piping are pre-installed at the factory saving hours of labor at the job site.
