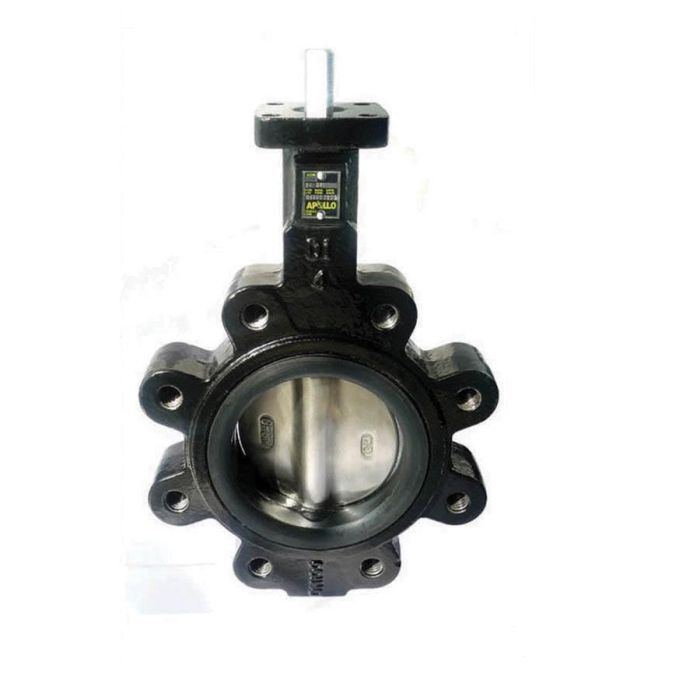

Apollo LD14103BE11A, 3" Apollo LD141 Butterfly Valve Ductile Iron with Aluminum-Bronze Disc & EPDM
WWC Part No/ SKU: 506468
Brand: Apollo
Mfg. Model: LD14103BE11A
Product Details
| Category | Butterfly Valves |
|---|---|
| Size | 3 In |
| Material | Ductile Iron |
| Brand | Apollo |
In stock
SKU
506468
$370.13
$214.57
/Each
Not Available
APOLLO VALVES - LD14103BE11A
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- Buna-N stem seal and glass reinforced epoxy resin bushing
- Black Buna-N seat
- Polished disc edge ensures long seat life, minimal torque
- 1-piece wafer design with flange locating holes in larger sizes
- Through shaft assures positive disc positioning and dependable performance
- Square shaft-to-disc connection provides a robust shaft-to-disc connection without pins or bolts
- Shaft equipped with weather seal to prevent external media from entering the shaft bore
- Isolates body from process media
- Valves are equipped with a stretch-resistant, non-collapsible blow-out proof seat
- Phenolic stiffener ring, resilient seated
Apollo™ Apollo International™ Butterfly Valve, Resilient Seated Lug Style, Series: LD141, 3 in Nominal, Flanged, 125/150 lb, -20 to 250 deg F Intermittent/225 deg F Continuous, 10-Position Handle Actuator, 7.13 in Top to Inlet Center, Ductile Iron Body, Aluminum Bronze Disc, EPDM
