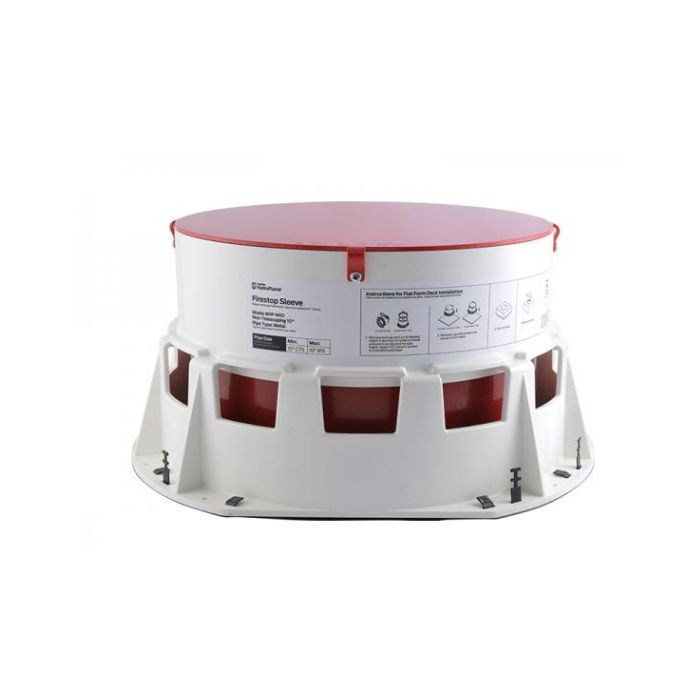

Holdrite HF-H10 HydroFlame Large Diameter Sleeves
WWC Part No/ SKU: 1086168
Brand: Holdrite
Mfg. Model: HF-H10
Product Details
| Category | Sleeve |
|---|---|
| Size | 10 in |
| Brand | Holdrite |
In stock
SKU
1086168
$64.20 $57.87 /Each
Not Available
HF-H10 HOLD LARGE DIAMETER CAST IN PLACE HOLLOW SLEEVE FOR 8IN METALLIC AND INSULATED METALLIC PIPES HF-H10 HOLD LARGE DIAMETER CAST IN
- UL Listed Firestop Devices
- For use with Plastic, Metallic, and Insulated Metallic penetrants from 8” to 12” in diameter
- Tested in concrete slabs up to 3 Hour F Rating (for 6” and thicker slabs)
- Safety caps meet OSHA hole cover requirements
- L Ratings and W Ratings available. W Ratings achievable using sealants
- Sleeves are built 8” tall, but can be cut as short as 6”
- Extensions available in 1” high increments to match slab thicknesses
- Extensions can be added to create a 2” water dam after concrete pour
- Extensions/Water Dam can support weight of a riser clamp
- Hollow Sleeves Available for use with traditional firestop sealants
Designed for penetrants up to 12 in., these hollow cast-in-place firestop sleeve devices allow you to achieve firestopping separately and provide a three-hour fire rating for slabs thicker than 6 inches. Sleeves come with an OSHA-compliant hole cover plate/safety cap and can be extended when working with thicker floor slabs.
