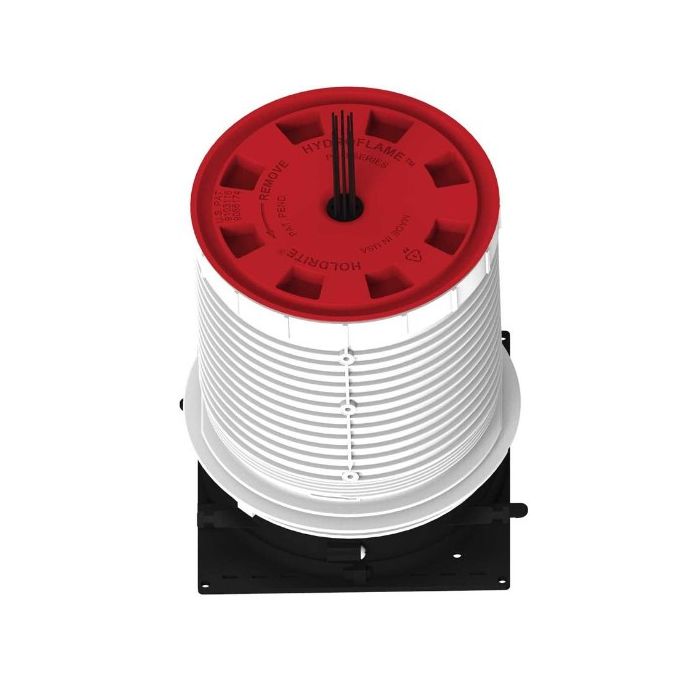

HoldRite HFP-M4 HydroFlame PRO Telescoping Fire Stop Deck Sleeve
WWC Part No/ SKU: 471514
Brand: Holdrite
Mfg. Model: HFP-M4
Product Details
| Category | Sleeve |
|---|---|
| Color | Silver, White |
| Material | Plastic, Steel |
| Brand | Holdrite |
In stock
SKU
471514
$32.10 $28.94 /Each
Not Available
HFP-M4 HOLD HOLDRITE HYDROFLAME PRO SERIES FIRE STOP TELESCOPING DECK SLEEVE 3IN -4IN METAL PIPE 8IN -12IN TALL HFP-M4 HOLD HOLDRITE HYDROFLAME PRO
- Ideal for flat concrete form decks – cast-in-place
- Ideal for corrugated metal decks (corrugated deck plate required)
- Available for ½” to 6” penetrants – piping, conduit, cables, etc.
- For insulated and non-insulated pipes
- Telescoping design adjusts from 8” to 12”, in ¼” increments
- Cut to as short as 2-1/2”
- Black base and black whiskers identifies metal piping system
- Red base and red whiskers identifies plastic or metal piping system
- Includes locator whiskers, to locate buried sleeves and to identify pipe type (metal or plastic)
- Dimensions on sleeves allows for simple height adjustments
- Safety caps meet OSHA hole cover requirements
- UL Listed firestop devices (2 or 3 hour F-ratings)
- Meets and/or exceeds building code requirements
- Built in fire, smoke, gas and water protection
- UL W-Rated seal, water-tight for most penetrants
- Allows for contraction, expansion, movement and off-center pipes
- Reduces piping system noise transfer by maintaining annular spacing
- Interlocking base capability assists with layout alignment
- Extensions available for slabs over 12”
- A variety of accessories are available
- UL 50 Pa Ratings
Unique HoldRite HydroFlame firestop systems, the UL listed water, smoke, and firestop product systems provide a water seal for unwanted water intrusion while still protecting against the spread of fire, smoke, and gases. Also, available are water dam and water module accessories for added water-tight requirements. The novel design of the HoldRite HydroFlame Pro Series transforms how cast-in-place firestop solutions are installed. The patented telescoping design eliminates the need to cut sleeves on the jobsite and the locator whiskers take the hassle out of finding buried sleeves after a concrete pour. The integrated threaded cap allows for easy non-destructive removal and meets OSHA hole cover requirements.
