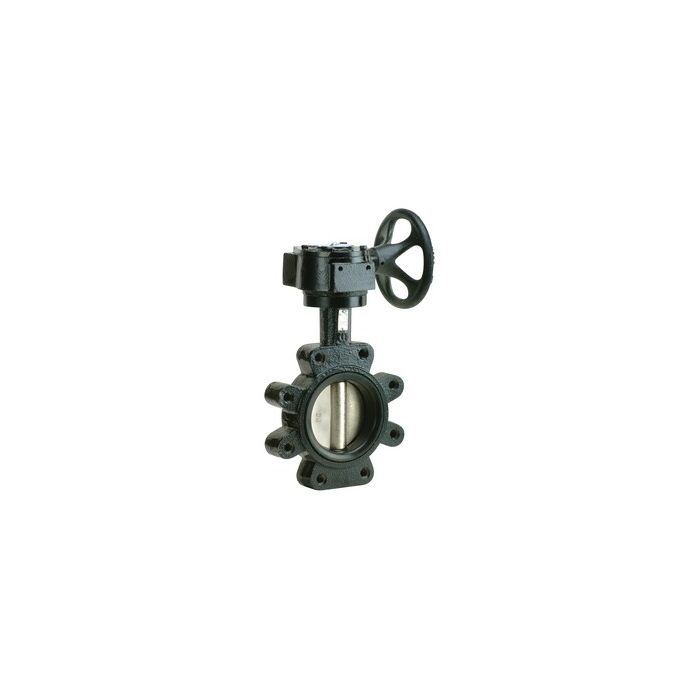

Matco V B5-LGG8 8 Cast Iron Ductile Iron BUNA Lug Butterfly Valve Gear
WWC Part No/ SKU: 535063
Brand: Matco V
Mfg. Model: B5-LGG8
Product Details
| Category | Butterfly Valve |
|---|---|
| Temperature Range | Up to 250 Deg F |
| Pressure Rating | 200 psi WOG |
| Size | 8 in |
| Material | Cast iron |
| Brand | Matco V |
In stock
SKU
535063
$1,237.00
$655.43
/Each
Not Available
B5-LGG8 MATCO 8IN CI BFV LUG/GEAR/DUCTILE DISC BUNA-N SEAT B5-LGG8 MATCO 8IN CI BFV LUG/GEAR/D
- Matco-Norca B5 butterfly valves incorporate a unique stem and disc design for substantially improved torque values and making these valves among the easiest to operate
- Butterfly valves can be used for throttling flow using either the 10-position levers or gear operators
- All Matco-Norca valves can be equipped with extensions for buried service
- Valve bodies are epoxy coated cast iron with 416 stainless steel stems
- Levers are ductile iron, gear operators are cast iron
- Ductile Iron Disc w/ Buna-N liners
B5-LGG8 MATCO 8IN CI BFV LUG/GEAR/DUCTILE DISC BUNA-N SEAT
