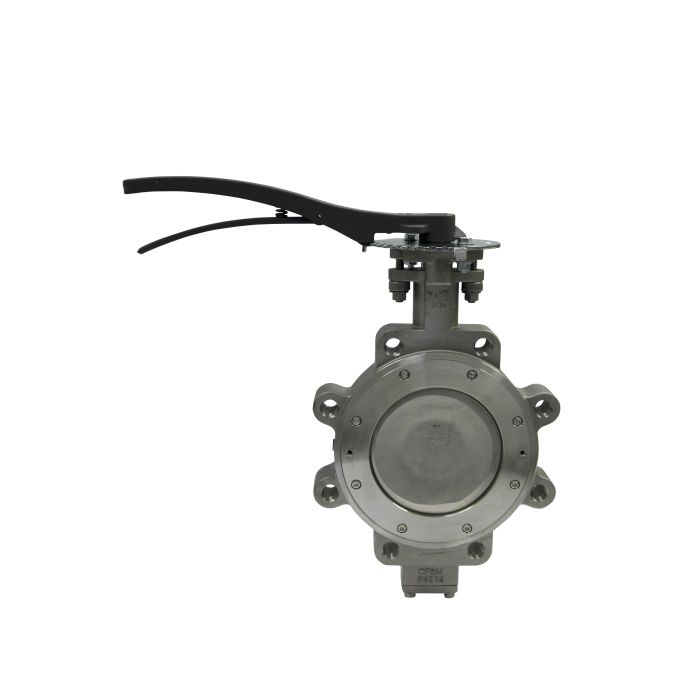

Apollo 230L12CSP8TA2 Double Offset High Performance Lug Style Butterfly Valve, 12 in
WWC Part No/ SKU: 843994
Brand: Apollo
Mfg. Model: 230L12CSP8TA2
Product Details
| Category | Supply Lines |
|---|---|
| Brand | Apollo |
In stock
SKU
843994
$14,447.06 $4,815.68 /Each
Not Available
230L12CSP8TA2 APOLLO BFV LUG 12IN HP CLS 300 WCB/SS/ TFM GEAR OP
- Standard Apollo special service
- Double offset high performance butterfly valve
- ISO 5211 mounting flange - universal mounting dimensions simplify valve actuation
- Rocker packing gland, shaped packing gland compensates for uneven adjustment of gland nuts
- Extended neck - allows for 2 in of pipe insulation
- Positive cast disc stop - prevents seat damage from over-travel of the disc beyond the closed position
- Jacking taps - allows the use of seat retainer bolts to aid in retainer removal
- Seat retainer, reliable multi-bolt retainer holds and supports the seat
- Corrosion protection - polyamide epoxy primer with high performance polyurethane topcoat is the standard finish for carbon steel valve bodies
- Blow-out proof stem, 17-4 PH stainless steel stem with high strength and good corrosion-resistance, designed per API 609 standard
- Anti-extrusion ring (under stem seals) - prevents the extrusion of stem seals, maintaining optimum seal
- Bearing (lower and upper) - full length provides maximum stem support
Apollo 230L12CSP8TA2, Butterfly Valve, Double Offset High Performance Lug Style Series: 230L 12 in Nominal
