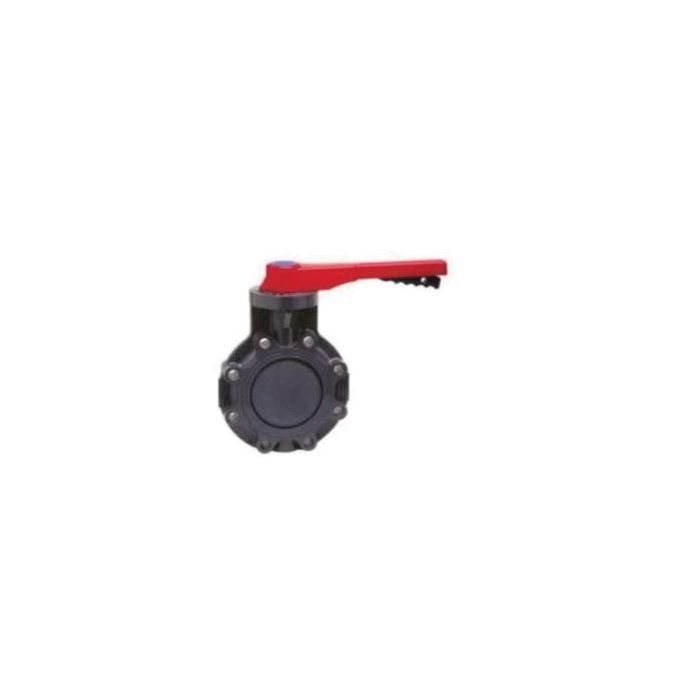

Spears 722311-080 Butterfly Valve, 8 in Nominal, Flanged End Style, 150 lb, PVC Body, EPDM Softgoods, Domestic
WWC Part No/ SKU: 347547
Brand: Spears
Mfg. Model: 722311-080
Product Details
| Category | Butterfly Valve |
|---|---|
| Item Weight (lbs) | 18.96 lbs |
| Size | 8 in |
| Color | Gray |
| Material | PVC |
| Brand | Spears |
In stock
SKU
347547
$2,014.66
/Each
Not Available
722311-080 SPEARS 8 PVC BUTTERFLY VALVE EPDM W/HANDLE 722311-080 SPEARS 8 PVC BUTTERFLY V
- Special off-set disc lifts quickly from seat to reduce wear and reduce operating torque
- Patented limited contact seat design provides free travel, eliminates seat creep, extrusion and wear, field replaceable without full valve disassembly
- Interlocking body and seat prevents wash-out or blow-out
- Fully isolated solid type 316L stainless steel stem
- High efficiency gear operator with cast aluminum housing, polypropylene handwheel and built-In position indicator
- Lug insert style valve has factory installed 316SS or zinc plated steel lug inserts
- Standard valve accepts field-installable lug inserts set option
- True lug design has factory installed zinc plated or 316SS lugs and is specially designed for connection to either side of valve
- EPDM O-ring
Spears Butterfly Valve, 8 in Nominal, Flanged, 150 lb, 140 deg F, Lever Handle Actuator, 2-31/32 in Inlet to Outlet Length, 12 in Top to Inlet Center, PVC Body, 316L Stainless Steel (Stem) Stem & Pin Material, EPDM, Gray, 13-1/2 in Dia x 18-5/8 in H, Domestic
Spears patented butterfly valve design departs from traditional liner-seat type valve to eliminate seat creep, reduce operating torque and provide positive seal-off. Ideally suited for flow control or throttling, this high-performance valve is offered with a full variety of options for greater application versatility in industrial and chemical processing applications. Available in IPS sizes 1-1/2 - 14 in Standard or 1-1/2 - 12 in true lug (factory installed lugs) style.
